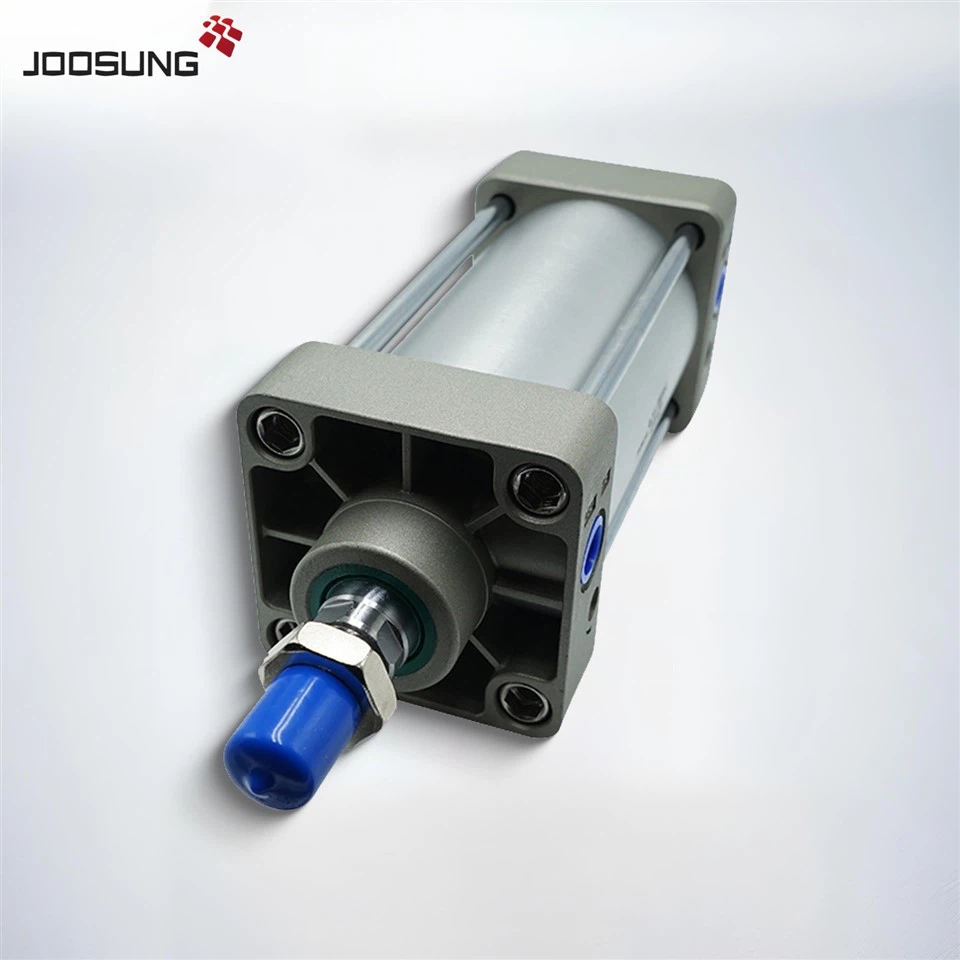

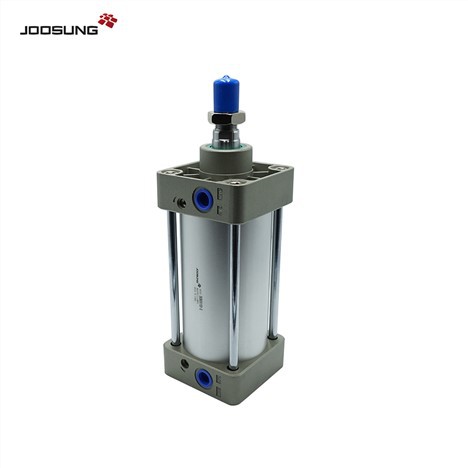

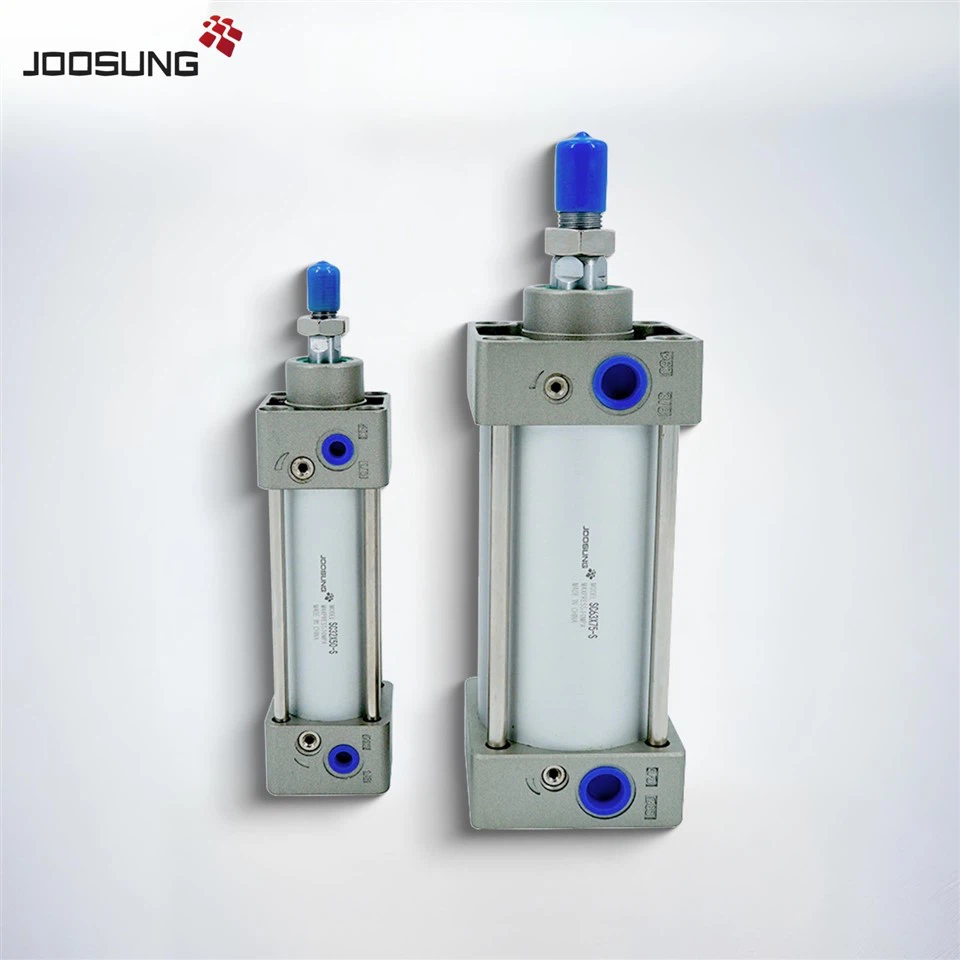

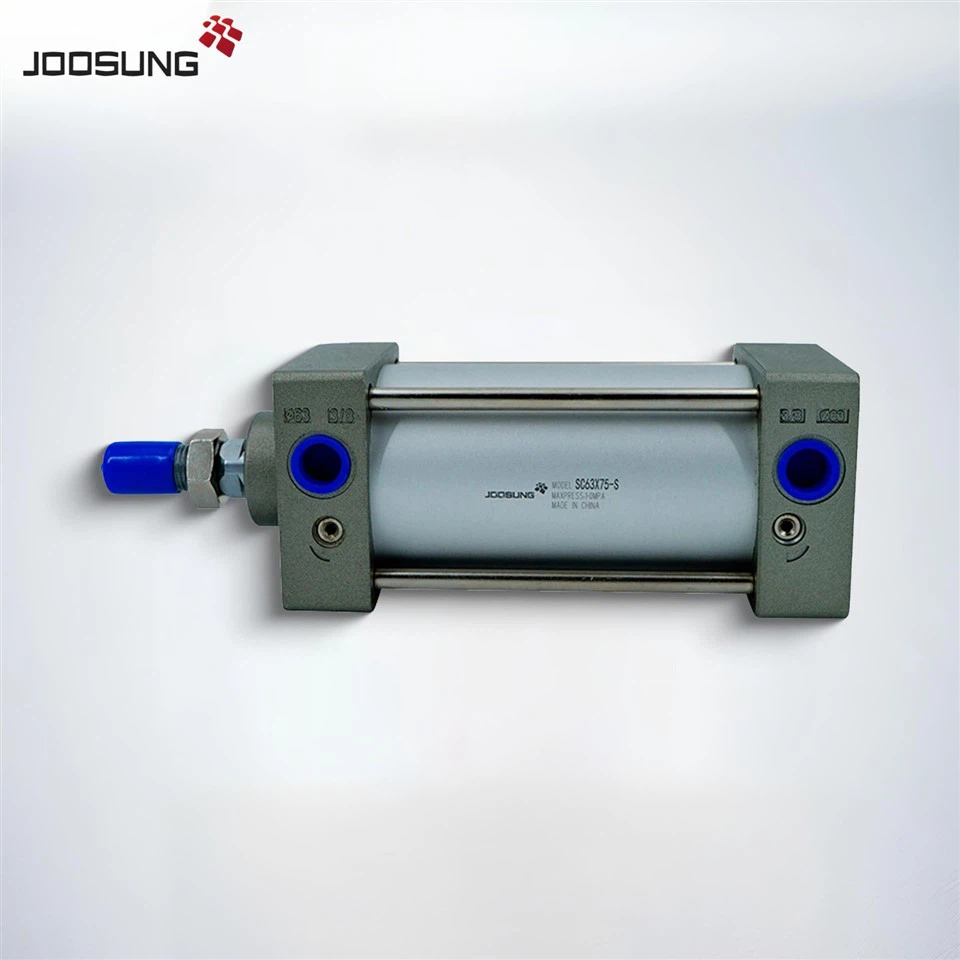

Ko te rango pneumatic raupapa SC he momo whakaihiihi -matarohia i hangaia i runga i nga paerewa Airtac me nga rahi ISO15552. E whakaatu ana i te -mahi mahi rua,-te kaha teitei o te konumohe koranu konumohe oko, me nga taputapu whakapuru whakarite, na reira ko tetahi o nga iraro e whakamahia nuitia ana i roto i nga mahi aunoatanga ahumahi.
Ko nga cylinders SC e mohiotia ana mo to ratou mauroa, mahi pono, me te ngawari o te whakauru. He maha nga rahi o te kohao mai i te 32mm ki te 100mm, me te roa o te whiu e waatea ana ki te 1000mm, ka tukuna e te raupapa SC he otinga whaihua mo nga hiahia mo te neke ahorangi.
|
Me pehea te Ota SC Series Pneumatic Cylinder |
|||||
|
S |
C |
50 |
50 |
20 |
S |
|
Tauira |
Te rahi o te poka |
Puka Potakaro |
Te whiu ka taea te whakarite |
Aukume |
|
|
C: He mahi takirua |
32 40 |
Kaore tenei waehere |
Patea:Kare he aukume |
||
|
CD: He rakau takirua |
50 63 |
S:Me te aukume |
|||
|
CJ: Te whiu ka taea te whakarite |
80 100 |
10 20 30 40 50 75 100 |
|||
Kei te rapu koe mo te ISO paerewa pneumatic cylinder mo to punaha aunoa?
Ko teRaupapa SCka whakaputa i nga mahi whakamatau me te whirihoranga ngawari mo nga tono ahumahi maha.
Whakapaa mai inaianeiki te tiki i nga papaaarangi hangarau, nga konae CAD 3D, he korero whakahua ranei!
|
Whakatakotoranga |
||||||||||
|
Poka mm |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
|
|
Tauira Motini |
Mahi Taurua |
|||||||||
|
Waenga Mahi |
Te rangi kua tātarihia |
|||||||||
|
Momo Pumau |
Momo noa / Momo FA / Momo FB / Momo CA / Momo CB / Momo SDB / Momo LB / |
|||||||||
|
Awhe pehanga mahi |
0.1~1.0MPa |
|||||||||
|
Whakapumautia te Atete Pehenga |
1.5MPa |
|||||||||
|
1Pamahana Mahi |
-5~70 tohu |
|||||||||
|
Te Awhe Tere Whakahaere |
50~800 mm/s |
|||||||||
|
Momo Buffer |
Pūreirei taea te whakarite |
|||||||||
|
Puka Puka |
20mm |
26mm |
45mm |
|||||||
|
Rahi Tauranga |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
G3/4" |
|||||
|
SCTauira Rangatū Tauira Wātea |
||||
|
SC32X25S |
SC32X50S |
SC32X75S |
SC32X100S |
SC32X125S |
|
SC32X150S |
SC40X50S |
SC40X75S |
SC40X100S |
SC40X125S |
|
SC40X150S |
SC40X175S |
SC40X200S |
SC40X250S |
SC50X50S |
|
SC50X75S |
SC50X80S |
SC50X100S |
SC50X125S |
SC50X150S |
|
SC50X160S |
SC50X175S |
SC50X200S |
SC50X250S |
SC50X300S |
|
SC63X75S |
SC63X80S |
SC63X100S |
SC63X125S |
SC63X150S |
|
SC63X200S |
SC63X250S |
SC63X300S |
SC63X350S |
SC80X80S |
|
SC80X100S |
SC80X125S |
SC80X150S |
SC80X175S |
SC80X200S |
|
SC80X250S |
SC80X300S |
SC80X350S |
SC80X400S |
SC80X450S |
